Woven Gabion Box Sewage Plant Corrosion Proof Reinforced Mesh Acid Alkali Resistance

Brand Name : KN

Model Number : KN-gabion box

Certification : CE ISO SGS COC PVOC

Place of Origin : CN

MOQ : 100 pc

Price : USD 15-18

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 500 pc per day

Delivery Time : 15 work days

Packaging Details : pallet

Product Name : Woven Gabion Box Sewage Plant Corrosion Proof Reinforced Mesh Acid Alkali Resistance

Key Words : Gabion Box

Cage Size : 1*1*1M, 1*1*2M,1*1*3M /2*1*1*0.5

Product Wire Material : Hot dip galvanized, Galfan coated

Aperture : 80*100mm

Zinc Coating : 275-300g/m2

Mesh : hexagonal shape

Hole Size : 6x8cm, 8x10cm

Mesh Hole : 80*100mm

Weaving Type : Double Twist

Contact Now

Woven Gabion Box Sewage Plant Corrosion Proof Reinforced Mesh Acid Alkali Resistance

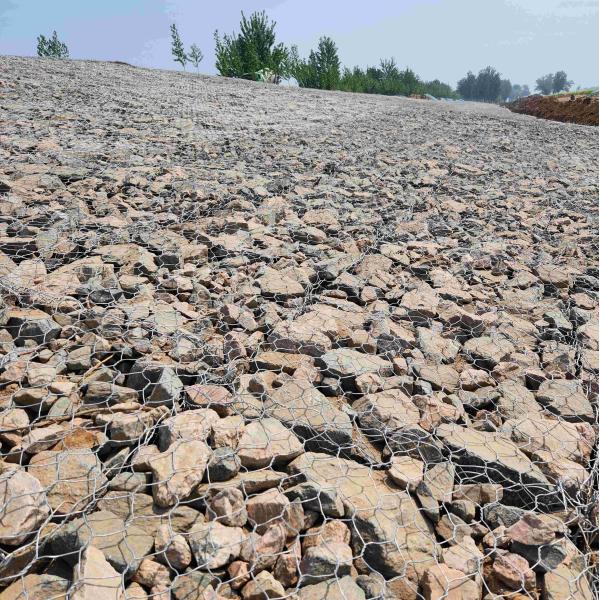

Woven Gabion Box for Hydraulic Engineering

Designed for critical water management projects, our heavy-duty woven gabion boxes feature double-twisted hexagonal steel mesh (3.0-4.0mm wire) with hot-dip galvanized or PVC coating for superior corrosion resistance. The 80×100mm mesh structure provides optimal stone retention while maintaining 95%+ permeability, effectively reducing flow velocity by 40-60%. Ideal for riverbank stabilization, flood control systems, and coastal protection works. Flexible yet durable construction accommodates ground movement while withstanding 5m/s water currents. Certified to EN 10223-3 standards with 30+ year lifespan. Custom sizes available for large-scale hydraulic applications.

Key Features

Material: Hot-dip galvanized steel (Zn ≥ 250g/m²), PVC-coated options (0.5mm thickness)
Design: Hexagonal double-twist mesh, 90x110mm standard apertures (customizable)
Coatings: Epoxy/Zinc-Aluminum alloy for marine/coastal applications
Fillers: Crushed rock, recycled concrete, or vegetated soil (client-specified)

Technical Advantages
✓ 3x Lifespan: 50-100 years corrosion resistance
✓ Load Capacity: Up to 50kN/m² vertical pressure
✓ Eco-Friendly: 100% recyclable materials with zero chemical runoff
✓ Modular Assembly: Interlocking panels for 70% faster installation

Applications

Civil Engineering: Riverbank stabilization, highway embankments
Architecture: Retaining walls, sound barriers, decorative façades
Disaster Prevention: Flood control barriers, landslide mitigation systems
Mining: Tailings dam reinforcement, slope retention

Customization Services

Sizes: 2x1x1m (standard) up to 6x2x1m (heavy-duty)
Wire Diameters: 2.2mm – 4.0mm (3.0mm recommended for high-load zones)
Colors: Metallic Silver (standard), Green/Black PVC coating (urban projects)

gabion specifications			Mesh hole modle
			8x10cm		6x8cm
Length(m)	Width(m)	Height(m)	Galvanized or PVC coated		Galvanized or PVC coated
			Mesh diameter	Zinc	Mesh diameter	Zinc
2	1	1	2.7mm	>245g/m²	2.0mm	>215g/m²
3	1	1	Side wire diameter	Zinc	Side wire diameter	Zinc
4	1	1	3.4mm	>265g/²	2.7mm	>245g/m²
6	1	1	Binding wire diameter of 2.7m		Binding wire diameter of 2.0m
